What is Electromagnetic Spectrum?
The electromagnetic (EM) spectrum is the entire range of all types of electromagnetic radiation. Radiation is energy that travels and spreads out as it goes, the visible light that comes from a lamp in your house and the radio waves that come from a radio station are two types of electromagnetic radiation.
The spectrum is generally organized by frequency (measured in Hertz) or wavelength. These two properties are inversely related: as frequency increases, wavelength decreases.
The Major Regions of the Spectrum

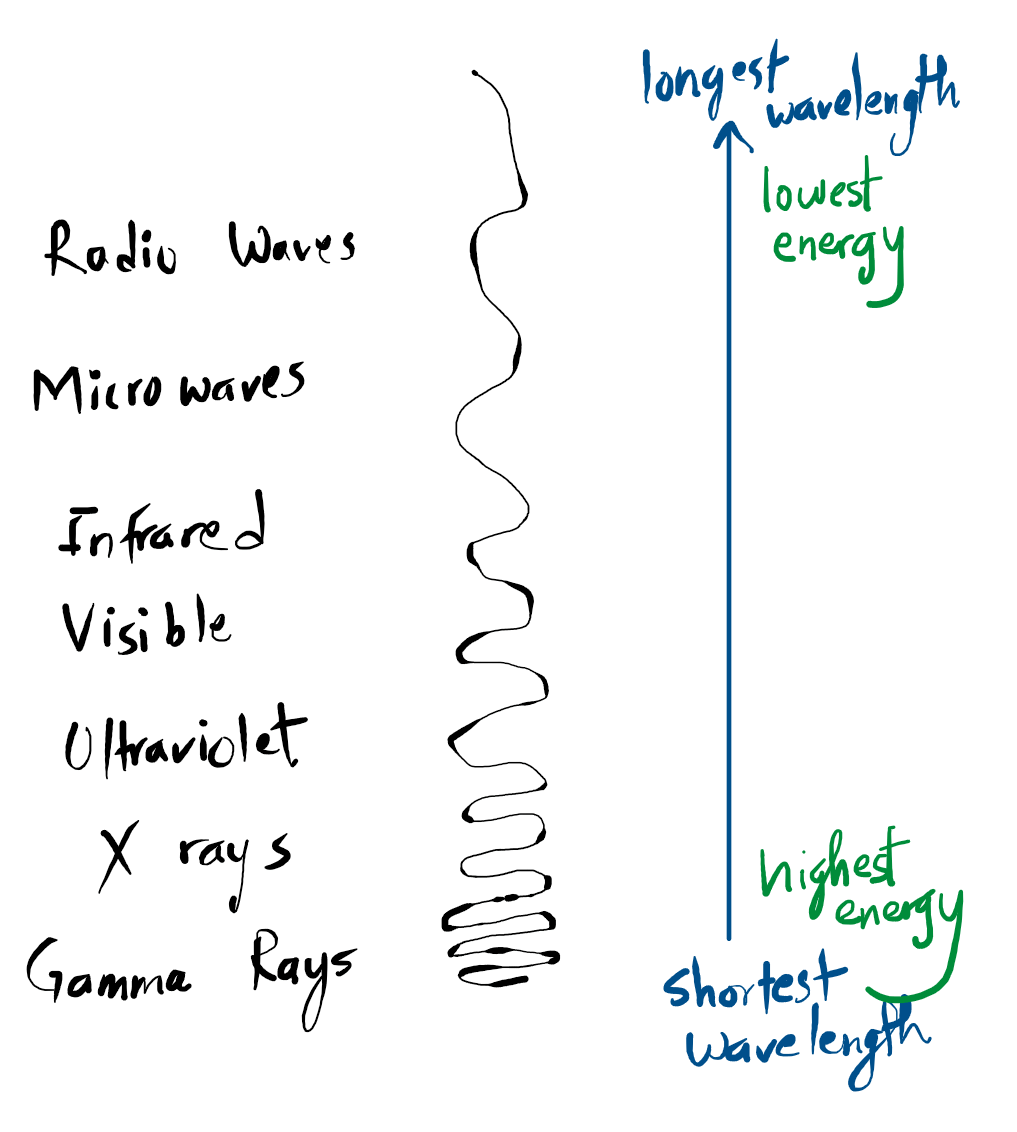

The spectrum is divided into seven regions, ordered here from lowest energy/longest wavelength to highest energy/shortest wavelength:
1. Radio Waves
Used for long-distance communication, including television, mobile phones, and wireless networking. Their wavelengths can be as long as a football field or as short as a football.
2. Microwaves
Commonly used for radar, satellite communication, and heating food. In tactical networks, these frequencies are critical for high-bandwidth data links.
3. Infrared (IR)
Emitted by anything that gives off heat. It is used in night-vision goggles, TV remote controls, and fiber-optic cables.
https://science.nasa.gov/ems/07_infraredwaves/
4. Visible Light
The only part of the spectrum the human eye can detect. It ranges from red (longest wavelength) to violet (shortest wavelength).
5. Ultraviolet (UV)
Radiated by the sun; it causes sunburns and is used in sterilization processes.
6. X-rays
High-energy waves that can pass through most objects, including soft body tissue, but are blocked by dense materials like bone or lead.
7. Gamma Rays
The highest energy waves in the spectrum. They are generated by radioactive atoms and in nuclear explosions. In medicine, they are used to treat cancer by killing diseased cells.
Key Physics Concepts
All electromagnetic waves travel at the speed of light (c), which is approximately $3×10^8$ meters per second in a vacuum. The relationship between wavelength (λ), frequency (f), and the speed of light is defined by:
$c=λf$
https://en.wikipedia.org/wiki/Wavelength
Furthermore, the energy (E) of a photon is directly proportional to its frequency:
$E=hf$
https://vce.studypulse.au/learn/PHY/photon_energy
Where:
- $h$ is Planck’s constant.
- $f$ is the frequency.
This explains why high-frequency radiation like X-rays or Gamma rays is “ionizing”—it carries enough energy to knock electrons off atoms, which can damage biological tissue or sensitive electronics.
Wireless Communication and Electromagnetic Spectrum
The relationship between wireless communication and the electromagnetic spectrum is essentially that of the vehicle and the road. The EM spectrum provides the “pathways” (frequencies), and wireless communication is the technology we use to drive data across those pathways.
1. Frequency as the “Carrier”

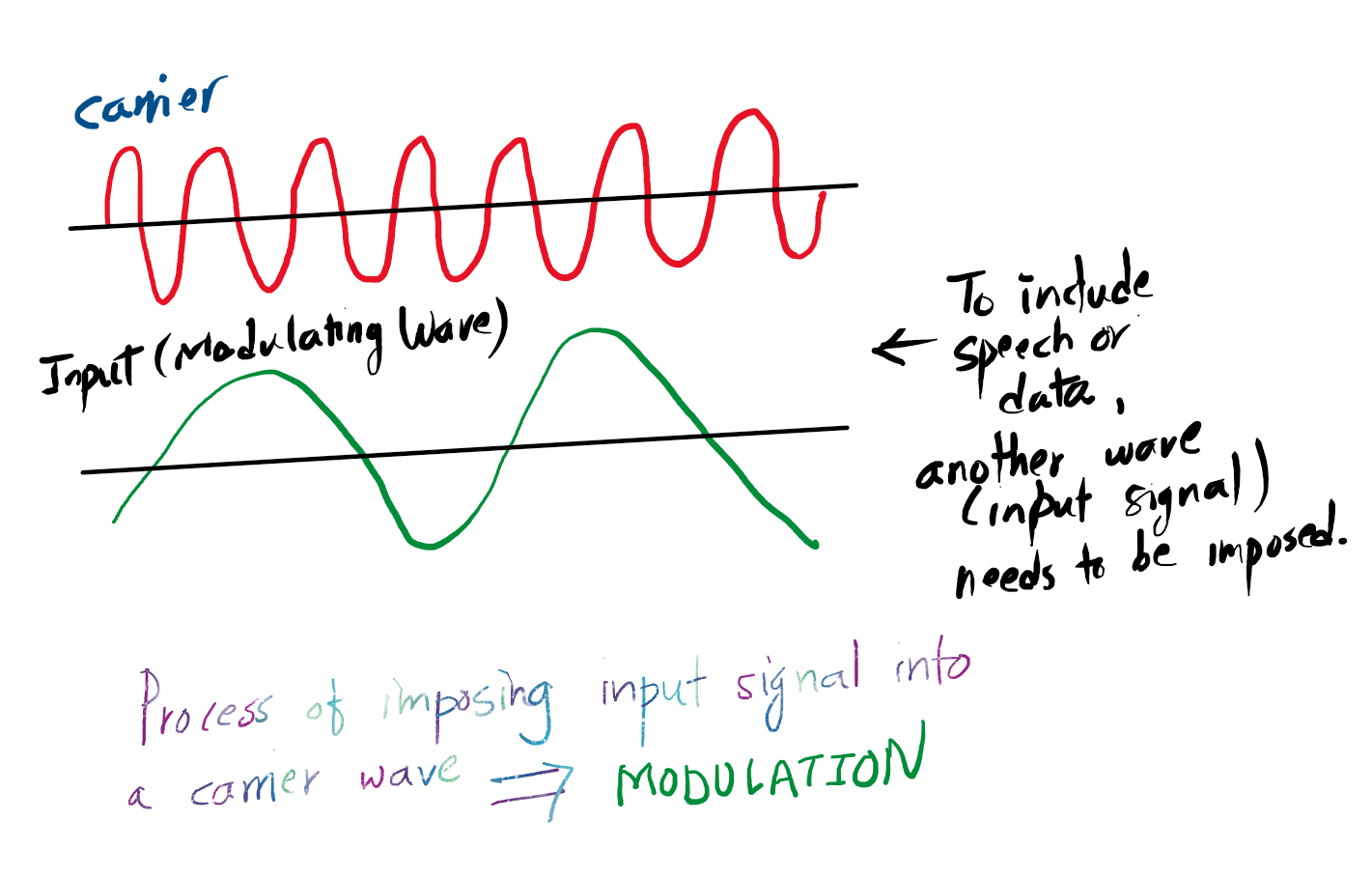

Wireless communication cannot exist without the EM spectrum because data must be “piggybacked” onto an electromagnetic wave. This process is called modulation.
https://www.taitradioacademy.com/topic/how-does-modulation-work-1-1/
- The Carrier Wave: A specific frequency in the spectrum (like 2.4 GHz for Wi-Fi) is chosen as a baseline.
- The Information: By slightly altering the wave’s amplitude, frequency, or phase, we encode digital bits (0s and 1s).
2. Bandwidth and Data Capacity
The “spectrum” isn’t just one thing; it’s a range. The bandwidth is the width of the slice of the spectrum used for a communication link.
- Direct Proportion: The more spectrum (bandwidth) you have, the more data you can transmit per second.
- The Shannon-Hartley Theorem: This fundamental law relates the capacity (C) of a channel to its bandwidth (B) and the Signal-to-Noise Ratio (S/N):
$C=B log_2 (1+\frac{S}{N})$
https://en.wikipedia.org/wiki/Shannon%E2%80%93Hartley_theorem
3. Propagation Characteristics
Where a signal sits on the EM spectrum determines how it behaves in the physical world.
https://animations.physics.unsw.edu.au/jw/EMspectrum.html
